V7 series truck-mounted concrete pump is a new generation equipment which is developed and SCHWING Germany technology.It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
Selling Point
1. More advanced boom structure technology
2. More efficient skirt valve pumping technology
3. More stable strut structure technology
4. More stable reversing buffer technology
5. More reliable full hydraulic reversing technology
6. Hydraulic system technology of ultra-low pressure loss
7. More secure and intelligent electrical control technology
Model | KNL5330THB37X-5RZ | ||
Item | Unit | Value | |
Pumping system | Max. Theor. Output(high/low pressure) | m3/h | 75/125 |
Max. Theor. Concrete Output Pressure(high/low pressure) | MPa | 10/6 | |
Rated Working Pressure | MPa | 32 | |
Pumping Frequency(high/low pressure) | min-1 | 15/25 | |
Hopper Capacity | L | 600 | |
Filling Height | mm | 1400 | |
Hydraulic System Type |
| Open Loop | |
Distribution Valve |
| S-valve | |
Oil Cylinder Dia.×Stroke | mm | φ125×1400 | |
Concrete Cylinder Dia.×Stroke | mm | φ230×1400 | |
Hydraulic Oil Cooling |
| Air cooling | |
Recommended Concrete Slump | cm | 12~23 | |
Max. Aggregate Dimension | mm | 40 | |
Placing boom | Structure Type |
| 37-5RZ |
Max. Placing Depth | m | 36.1 | |
Horizontal Placing Radius | m | 32.6 | |
Placing Depth | m | 25.5 | |
Slewing Angle |
| ± 270º | |
Pipe Diameter | mm | 125 | |
End Hose Length | mm | 3000 | |
Outriggers Span (Front×Rear×Side) | mm | 9332×10130×9410 | |
CO-NELE Pump Trucks 25m to 56m The main structure is made of imported high-strength steel plate, the vibration reduction technology of the boom, the unilateral operation with protection, the anti-tip control technology, the patented "SN" flexible commutation technology, and the unique electro-hydraulic proportional displacement of the industry.
Rotary anti-swing control technology
With the new rotary brake technology, the boom swing amplitude is reduced by 60%.
High abrasion wear parts
The full integration of Germany's technology has greatly improved performance. Straight pipe, hinged elbow pipe, large elbow pipe, and small elbow can reach a service life of 20-30 thousand cubes; the discharge port and transition sleeve can reach 40 to 60 thousand cubes; the life span of a piston can reach 20 thousand cubes; The service life reaches 50 thousand cubes, the cutting ring has a service life of 20 thousand cubes, and the delivery cylinder has a service life of 100 to 140 thousand cubes.
Fault self-diagnosis technology
The device status can be inspected every moment to monitor and diagnose faults in real time, which can effectively shorten the time for troubleshooting by 70%, saving you time and effort.
Intelligent arm system
Lift arm: Push the arm up/down switch up or down to automatically open or retract the boom.
Limited activity height: When working with obstacles places can effectively prevent the damage caused.
Boom overload protection technology:
A safety valve device is added to the boom cylinder balance valve. When the boom load is too large, the overload oil pressure is automatically released to protect the boom from damage.
1. Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, Iran, UAE, Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
2. What is the proportion of your products exported?
75% of our products are exported to all over the world.
3. What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.
4. What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.
5. What spare parts can you supply?
All kinds of spare parts of SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SANY, SDLG, LONKING, XGMA, CUMMINS ENGINE, ZF GEAR BOX, etc.
INTERNATIONAL STANDARD MANUFACTURING
Strength casting legend, advanced production technology ensures the first-class quality level,
Professional heavy truck production lines of international standards create the most trusted card products for you.

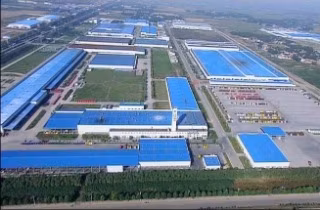

SINOTRUK has many specialized international advanced level production line-frame, body assembly production and entire vehicle assembly, inspection and so on, and all use of advanced international, domestic leading production, testing facilities, high degree of automation, all can provide a strong support for the building of the model.
Vehicle assembly line is the longest general assembly line of heavy commercial vehicles in Asia. The whole production line is composed of pre line assembly line, trim line, engine assembly line and axle assembly line etc. SINOTRUK has the most advanced fully automatic nut tightening machine, pipe packing machine, transmission shaft packaging and assembly facilities and various liquid filling machines, electrical testing instrument and so on. Guarantee the quality of the vehicle assembly strongly.
TECHNOLOGY RESEARCH AND DEVELOPMENT ADVANTAGES
First leading advantage: SINOTRUK masters overall R & D core technology and major general component, and has self manufacturing capability
Second leading advantage: Unified technical thinking, unified planning, unified process means, unified quality standard
Third leading advantage: High-end professionals, improve product development chain, which make SINOTRUK unique advantage in domestic heavy-duty automobile product development
