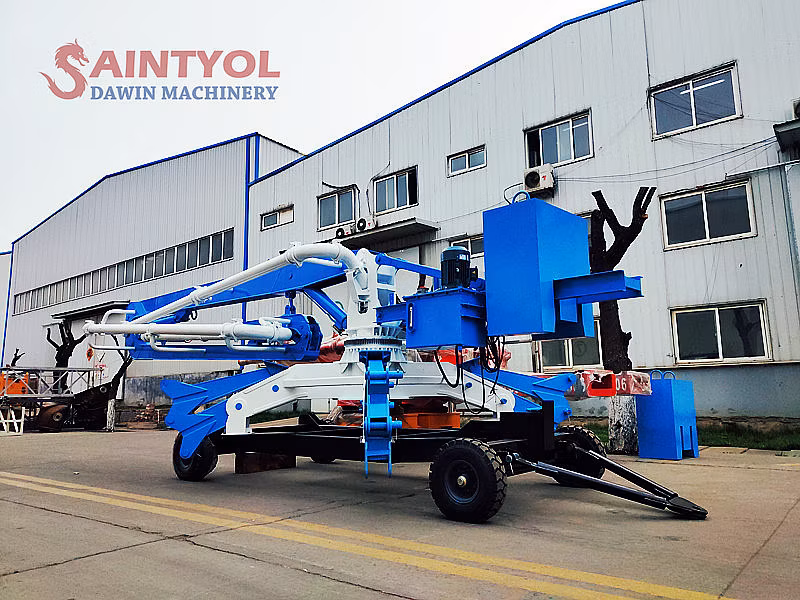

Robot Mobile Concrete Placing Boom
Saintyol DAWIN Machinery spider mobile hydraulic concrete placing booms mainly includes 13m, 15m, 17m 19m 21m 23m driven by a fully hydraulic system. Mobile hydraulic concrete placing booms driven by fully hydraulic system. It does not need to be fixed while working and could be moved to another place by tower crane on site, highly movable and flexible. It is very suitable and widely used for the construction of form walls, pipes, columns, piles, other vertical structures, different floors without confined placing areas and complicated jobsites without being influenced by the size and shape of floors.
Concrete placing boom is an auxiliary equipment of concrete pump. It is connected by standard conveying pipe.
Like a robot can quickly and accurately deliver to any pouring part of the working surface to continuous pouring.
Sloved the problem of fabric conveying concrete,
greatly reduces the labor intensity and improves the progress and quality of the construction.
Features:
1 One button stabilization technology
The press of a button brings the boom to a smooth and immediate stop.
2 Smart boom system
Advanced technology to increase overall efficiency and reduce operator fatigue.
3 Boom anti-vibration technology
Minimizes chatter during pumping, to allow steady delivery.
4 Swing control technology
Rotary braking delivers precise swing operations.
5 Highly wear-resistant parts
Improved service life and reduced operating costs.
6 Protection technology
Features such as boom overload protection and hydraulic oil level monitoring are used to prevent damage.
7 Energy-saving technology
Increased pumping efficiency equals reduced fuel consumption.
Saintyol DAWIN Mobile Concrete Placing Boom Advantage:
1. It can be placed in suitable places required without being fixed
2. It features compact structure ,light weight and can be lifted as a whole by a crane
3. With excellent maneuverability,it can meet the requirements for concrete placement
on different jobsite ,and is ideal for concrete pumping and placing
4. Easy operation,reliable safety and economical purchase.
5. It can be drived by people and are flexibility
Spider Hydraulic Mobile Concrete Placing Boom Models:
Saintyol DAWIN Machinery Concrete Placing Boom Main Parts:
Package & Shipping:

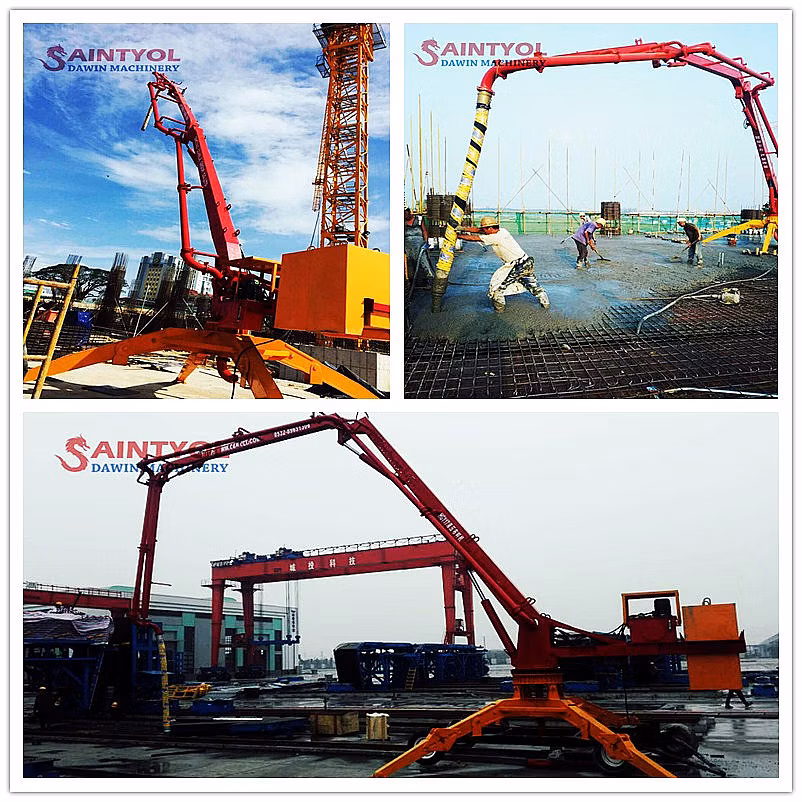

Jobsite Performance:
Related Concrete Pump & Shotcrete Pump Spraying Machines:
Saintyol DAWIN Machinery Hydraulic Concrete Placing Boom FAQ.
Q: How many kinds of concrete placing booms you have?
A: We have below series.
1: 12/15/18m Manual Mechanical Spider Concrete Placing Booms
2: 13/15/17/19/21/23m Mobile Hydraulic Spider Concrete Placing Booms
3: 29/32m/33m/36m Floor Climbing Type and Elevator Shaft Climbing Concrete Placing Booms (Tubular Column)
4: 21/24/28/32 Elevator Well Shaft Climbing Concrete Placing Booms (Mast Section)
Q: Do you have concrete placing booms with boom length over 36m?
A: Yes, boom length over 36m needs to be customized by order.
Q: Is there any proportional multiway valve for concrete placing boom?
A: Proportional mutiway valve is optional for more smooth operation like pump trucks.
Q: Our tower crane is not big enough to lift tubular column for installation, how can we do?
A: We can make the tubular column separate for light weight such as 5m, 6m 7m, fast and easy installation.
Dear friends:
Welcome to our website and hope our concrete placing boom would make you satisfied. We think creatively, design bravely, manufacture precisely and loyalty to our customers. And we have our own factory. So We can produce the products, according to customer requirements.
Construction For Prosperity !
Yours sincerely
Saintyol Dawin Machinery
Saintyol DAWIN Machinery spider mobile hydraulic concrete placing booms mainly includes 13m, 15m, 17m 19m 21m 23m driven by a fully hydraulic system. Mobile hydraulic concrete placing booms driven by fully hydraulic system. It does not need to be fixed while working and could be moved to another place by tower crane on site, highly movable and flexible. It is very suitable and widely used for the construction of form walls, pipes, columns, piles, other vertical structures, different floors without confined placing areas and complicated jobsites without being influenced by the size and shape of floors.
Concrete placing boom is an auxiliary equipment of concrete pump. It is connected by standard conveying pipe.
Like a robot can quickly and accurately deliver to any pouring part of the working surface to continuous pouring.
Sloved the problem of fabric conveying concrete,
greatly reduces the labor intensity and improves the progress and quality of the construction.
Features:
1 One button stabilization technology
The press of a button brings the boom to a smooth and immediate stop.
2 Smart boom system
Advanced technology to increase overall efficiency and reduce operator fatigue.
3 Boom anti-vibration technology
Minimizes chatter during pumping, to allow steady delivery.
4 Swing control technology
Rotary braking delivers precise swing operations.
5 Highly wear-resistant parts
Improved service life and reduced operating costs.
6 Protection technology
Features such as boom overload protection and hydraulic oil level monitoring are used to prevent damage.
7 Energy-saving technology
Increased pumping efficiency equals reduced fuel consumption.
Saintyol DAWIN Mobile Concrete Placing Boom Advantage:
1. It can be placed in suitable places required without being fixed
2. It features compact structure ,light weight and can be lifted as a whole by a crane
3. With excellent maneuverability,it can meet the requirements for concrete placement
on different jobsite ,and is ideal for concrete pumping and placing
4. Easy operation,reliable safety and economical purchase.
5. It can be drived by people and are flexibility
Spider Hydraulic Mobile Concrete Placing Boom Models:
| Model | HGY13 | |
| Boom length | 13m | |
| Hose length | 3m | |
| Rotatary angle | 360° | |
| Rotating speed | 0.23r/min | |
| Elevation angle | -2°~84.4° | |
| System pressure | 20Mpa | |
| Motor power | 4Kw | |
| Revolution speed | 0.2~0.3r/min | |
| Drive mode | Fully hydraulic drive | |
| Pipe type | φ125 | |
| Landing leg track | 3.15×3.15m | |
Size: | 6.6×2.0×3.1m | |
| Weight | Self weight | 2.7t |
| Balance weight | 1.8t | |
| PLACING RADIUS | 15000mm |
| PLACING HEIGHT | 17390mm |
| PLACING DEPTH | 10300mm |
| BOOM ARM ELEVATION TRAVEL | 0°~90° |
| SLEWING RANGE | 360° |
| HYDRAULIC SYSTEM POWER | 4kW |
| WORKING PRESSURE | 20MPa |
| SLEWING SPEED | 0.2~0.3r/min |
| CONCRETE PIPE DIAMETER | φ125×4 |
| RUBBER HOSE | 3m |
| OUTRIGGER SPAN | 4000×4000mm |
| TOTAL WEIGHT | 4500kg |
| COUNTERWEIGHT | 2×1100kg |
| THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL VERTICAL FORCE | 67kN |
| THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL FEET SUPPORT REACTION | 45kN |
| OVERALL DIMENSION | 8900×4000×2585mm |
| CONCRETE PIPE DIAMETER | Φ125mm |
| PLACING RADIUS | 17m |
| BOOM ARM ELEVATION TRAVEL | -4°~90° |
| SLEWING RANGE | 360° |
| RUBBER HOSE | 3m |
| HYDRAULIC SYSTEM POWER | 5.5KW |
| WORKING PRESSURE | 20Mpa |
| SLEWING SPEED | 0.2~0.3r/min |
| TOTAL WEIGHT | 6200 |
| COUNTERWEIGHT | 2200kg |
| TOTAL HEIGHT | 3400mm |
| THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL VERTICAL FORCE | 104kN |
| THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL FEET SUPPORT REACTION | 69.6kN |
Saintyol DAWIN Machinery Concrete Placing Boom Main Parts:
Package & Shipping:
Jobsite Performance:
Related Concrete Pump & Shotcrete Pump Spraying Machines:
Saintyol DAWIN Machinery Hydraulic Concrete Placing Boom FAQ.
Q: How many kinds of concrete placing booms you have?
A: We have below series.
1: 12/15/18m Manual Mechanical Spider Concrete Placing Booms
2: 13/15/17/19/21/23m Mobile Hydraulic Spider Concrete Placing Booms
3: 29/32m/33m/36m Floor Climbing Type and Elevator Shaft Climbing Concrete Placing Booms (Tubular Column)
4: 21/24/28/32 Elevator Well Shaft Climbing Concrete Placing Booms (Mast Section)
Q: Do you have concrete placing booms with boom length over 36m?
A: Yes, boom length over 36m needs to be customized by order.
Q: Is there any proportional multiway valve for concrete placing boom?
A: Proportional mutiway valve is optional for more smooth operation like pump trucks.
Q: Our tower crane is not big enough to lift tubular column for installation, how can we do?
A: We can make the tubular column separate for light weight such as 5m, 6m 7m, fast and easy installation.
Dear friends:
Welcome to our website and hope our concrete placing boom would make you satisfied. We think creatively, design bravely, manufacture precisely and loyalty to our customers. And we have our own factory. So We can produce the products, according to customer requirements.
Construction For Prosperity !
Yours sincerely
Saintyol Dawin Machinery
